Description

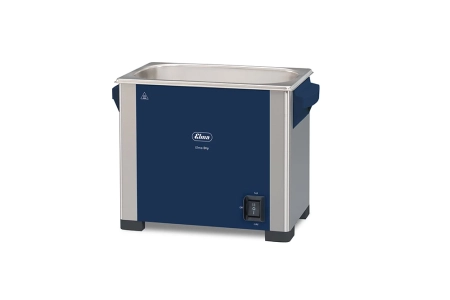

Elma Dry drying units are available in 3 sizes (30, 120, and 300) and designed for use in production, workshop, and service. After ultrasonic cleaning, the parts are first rinsed in the basket with municipal water and then conveniently placed in the Elma Dry drying unit.
Fitted with cold and hot air blower (70 °C), sensitive parts can also be dried gently. In cold air operation, the parts to be dried can also be cooled quickly. The hot air function is activated while the cover is on. The cover has ventilation slots, ensuring that maximum air turbulence is produced and the moist air is conducted to the outside. At the same time, the cover reduces energy consumption.
The dust filter on the underside is replaceable and prevents re-soiling of the cleaned parts by the dust in the room air.
Elma Dry units are very user-safe thanks to the safety shutdown upon reaching the limit temperature.
Technical Specifications
| Elma Dry 30 | Elma Dry 120 | Elma Dry 300 | |
| Tank labour capacity (l) | 1.9 | 9.0 | 20.6 |
| Heating power (W) | 480 | 550 | 1100 |
| Temperature max. (°C) | 70 | 70 | 70 |
| Unit out dimensions W/D/H (mm) | 300/186/219 | 362/285/322 | 568/347/322 |
| Tank inner dimensions W/D/H (mm) | 240/137/100 | 300/240/200 | 505/300/200 |
| Max. basket loading (kg) | 1.0 | 7.0 | 12.0 |
| Basket inner dimensions W/D/H (mm) | 198/106/51 | 250/190/115 | 455/250/114 |
| Weight (kg) | 3.6 | 6.1 | 10.2 |
