Description

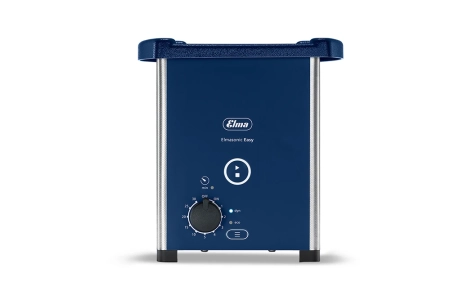

Elmasonic EASY 20H (heated)
efficient 37 kHz ultrasonic high-performance transducers
cleaning tank made of cavitation-resistant stainless steel
user-friendly and clearly arranged operating panel; sealed against liquid intrusion to protect the electronics
LED display for ultrasonic function
rotary switch for easy preselection of the cleaning time
continuous operating or short-term operation between 1 and 30 minutes
permanent sweep function for optimized sound field distribution through frequency modulation
dry-run protected heating
temperature selectable by rotary switch; from 30°C to 80°C in increments of 5°C (for H units)
LED display for heating operation (for H units)
detachable power cord with IEC plug
selectable temperature threshold with alarm
automatic safety shutdown after 8 hours of continuous operation
automatic safety shutdown at a bath temperature of 90 °C
“Pulse“ function
- Mains voltage (VAC) 220-240 V
- Ultrasonic frequency (kHz) 37
- Total power consumption EASY 20 (W) 35
- Total power consumption EASY 20 H (W) 155
- Effective ultrasonic power (W) 35
- Max. ultrasonic peak performance** (W) 280
- Heat output (for H units) (W) 120
- Device external dimensions W / D / H (mm) 176 / 176 / 219
- Tank external dimensions W / D / H (mm) 137 / 123 / 99
- (optional) Basket internal dimensions W / D / H (mm) 112 / 103 / 50
- Cover included
- Max. filling volume (litres) 1.75
- Weight (kg) 2.1
- Tank material stainless steel
- Casing material stainless steel
- Sound pressure level (LpAU) (with cover) <70 db
- Protection class IP 20
- 2 year limted warranty
- Made in Germany
Documents
Brochure Elmasonic EASY Series
Operating Instructions Elmasonic EASY
