Description

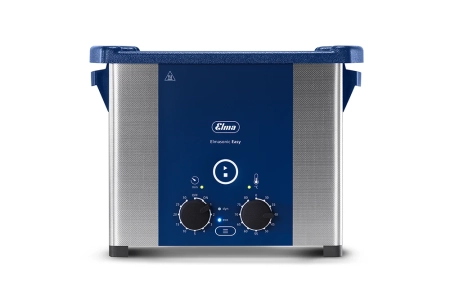

Elmasonic EASY 30H (heated ) 2.75 litre
efficient 37 kHz ultrasonic high-performance transducers
cleaning tank made of cavitation-resistant stainless steel
user-friendly and clearly arranged operating panel; sealed ag ainst liquid intrusion to protect the electronics
LED display for ultrasonic function
rotary switch for easy preselection of the cleaning time
continuous operating or short-term operation between 1 and 30 minutes
permanent sweep function for optimized sound field distributi on through frequency modulation
dry-run protected heating
temperature selectable by rotary switch; from 30°C to 80°C in increments of 5°C
LED display for heating operation
detachable power cord with IEC plug
selectable temperature threshold with alarm
automatic safety shutdown after 8 hours of continuous operati on
automatic safety shutdown at a bath temperature of 90 °C
ergonomically shaped plastic handles
“Pulse“ function
- Mains voltage (Vac) 115-120 V/220-240 V
- Ultrasonic frequency (kHz) 37
- Total power consumption EASY 30 H (W) 280
- Effective ultrasonic power (W) 80
- Max. ultrasonic peak performance**(W) 320
- Heat output (W) 200
- Device external dimensions W / D / H (mm) 264 / 176 / 219
- Tank external dimensions W / D / H (mm) 225 / 124 / 99
- (optional) Basket internal dimensions W / D / H (mm) 198 / 106 / 50
- Cover included
- Max. filling volume (litres) 2.75
- Weight (kg) 3.3
- Tank material stainless steel
- Casing material stainless steel
- Carrying handles ?
- Sound pressure level (LpAU) (with cover) <70 db
- Protection class IP 20
- 2 year limited warranty
- Made in Germany
Documents
Brochure Elmasonic EASY Series
Operating Instructions Elmasonic EASY
