Description

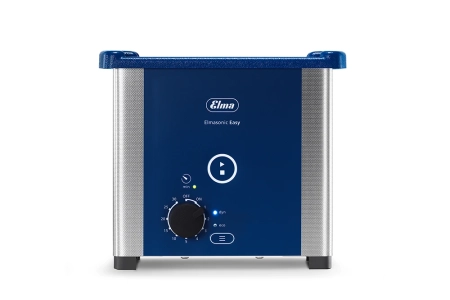

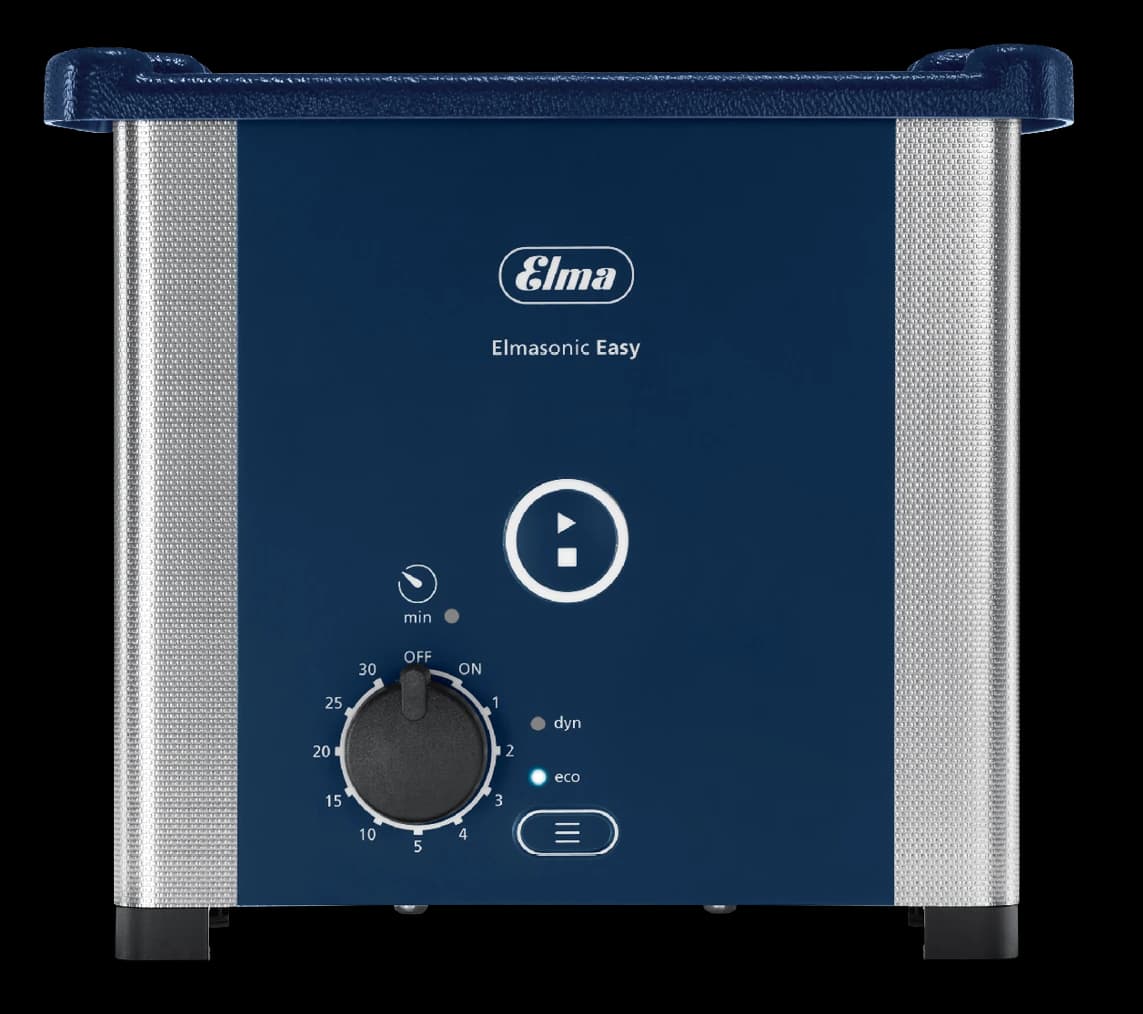

Elmasonic EASY 10 (un-heated)
cleaning tank made of cavitation-resistant stainless steel
user-friendly and clearly arranged operating panel; sealed against liquid intrusion to protect the electronics
LED display for ultrasonic function
rotary switch for easy preselection of the cleaning time
continuous operating or short-term operation between 1 and 30 minutes
permanent sweep function for optimized sound field distribution through frequency modulation
dry-run protected heating
temperature selectable by rotary switch; from 30°C to 80°C in increments of 5°C (for H units)
LED display for heating operation (for H units)
detachable power cord with IEC plug
selectable temperature threshold with alarm
automatic safety shutdown after 8 hours of continuous operation
automatic safety shutdown at a bath temperature of 90 °C
“Pulse“ function
- Mains voltage (VAC) 100-120 V/220-240 V
- Ultrasonic frequency (kHz) 37
- Total power consumption EASY 10 (W) 30
- Total power consumption EASY 10 H (W) 90
- Effective ultrasonic power (W) 30
- Max. ultrasonic peak performance** (W) 240
- Heat output (for H units) (W) 60
- Device external dimensions W / D / H (mm) 206 / 120 / 182
- Tank external dimensions W / D / H (mm) 190 / 85 / 59
- (optional)Basket internal dimensions W / D / H (mm) 177 / 73 / 30
- Cover included
- Max. filling volume (litres) 0.8
- Weight (kg) 2.0
- Tank material stainless steel
- Casing material stainless steel
- Sound pressure level (LpAU) (with cover) Protection class IP 20
- 2 year limited warranty
- Made in Germany
Documents
Brochure Elmasonic EASY Series
Operating Instructions Elmasonic EASY
Video: Elmasonic EASY Ultrasonic Cleaners
