Description

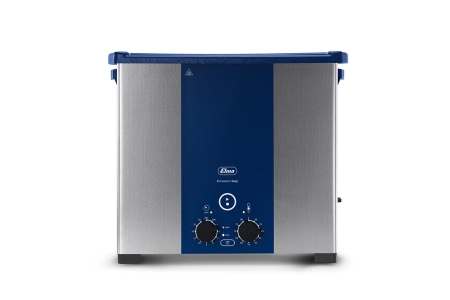

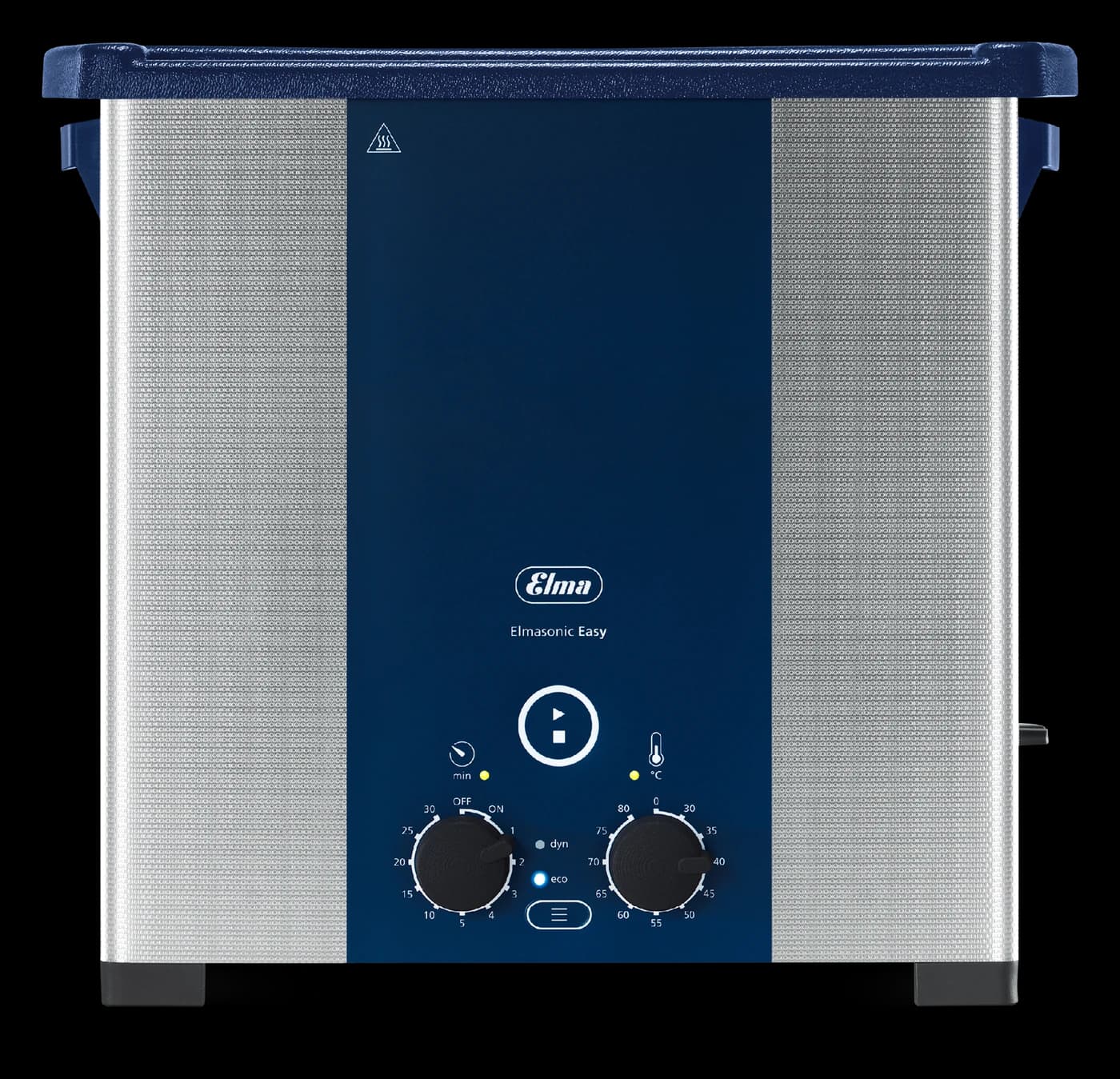

Elmasonic EASY 120H (heated) –
efficient 37 kHz ultrasonic high-performance transducers
cleaning tank made of cavitation-resistant stainless steel
user-friendly and clearly arranged operating panel; sealed ag ainst liquid intrusion to protect the electronics
LED display for ultrasonic function
rotary switch for easy preselection of the cleaning time
continuous operating or short-term operation between 1 and 30 minutes
permanent sweep function for optimized sound field distributi on through frequency modulation
dry-run protected heating
temperature selectable by rotary switch; from 30°C to 80°C in increments of 5°C (for H units)
LED display for heating operation (for H units)
detachable power cord with IEC plug
selectable temperature threshold with alarm
automatic safety shutdown after 8 hours of continuous operati on
automatic safety shutdown at a bath temperature of 90 °C
side-mounted knob for easy draining of the cleaning liquid th rough the drain duct on the rear
ergonomically shaped plastic handles
“Pulse“ function
- Mains voltage (Vac) 220-240 V
- Ultrasonic frequency (kHz) 37
- Total power consumption EASY 120 H (W) 1000
- Effective ultrasonic power (W) 200
- Max. ultrasonic peak performance** (W) 800
- Heat output (W) 800
- Device external dimensions W / D / H (mm) 342 / 285 / 322
- Tank external dimensions W / D / H (mm) 276 / 216 / 199
- (optional) Basket internal dimensions W / D / H (mm) 250 / 190 / 115
- Cover included
- Max. filling volume (litres) 12.75
- Weight (kg) 7.5
- Tank material stainless steel
- Casing material stainless steel
- Drain duct
- Carrying handles
- Sound pressure level (LpAU) (with cover) Protection class IP 20
- 2 year limited warranty
- Made in Germany
